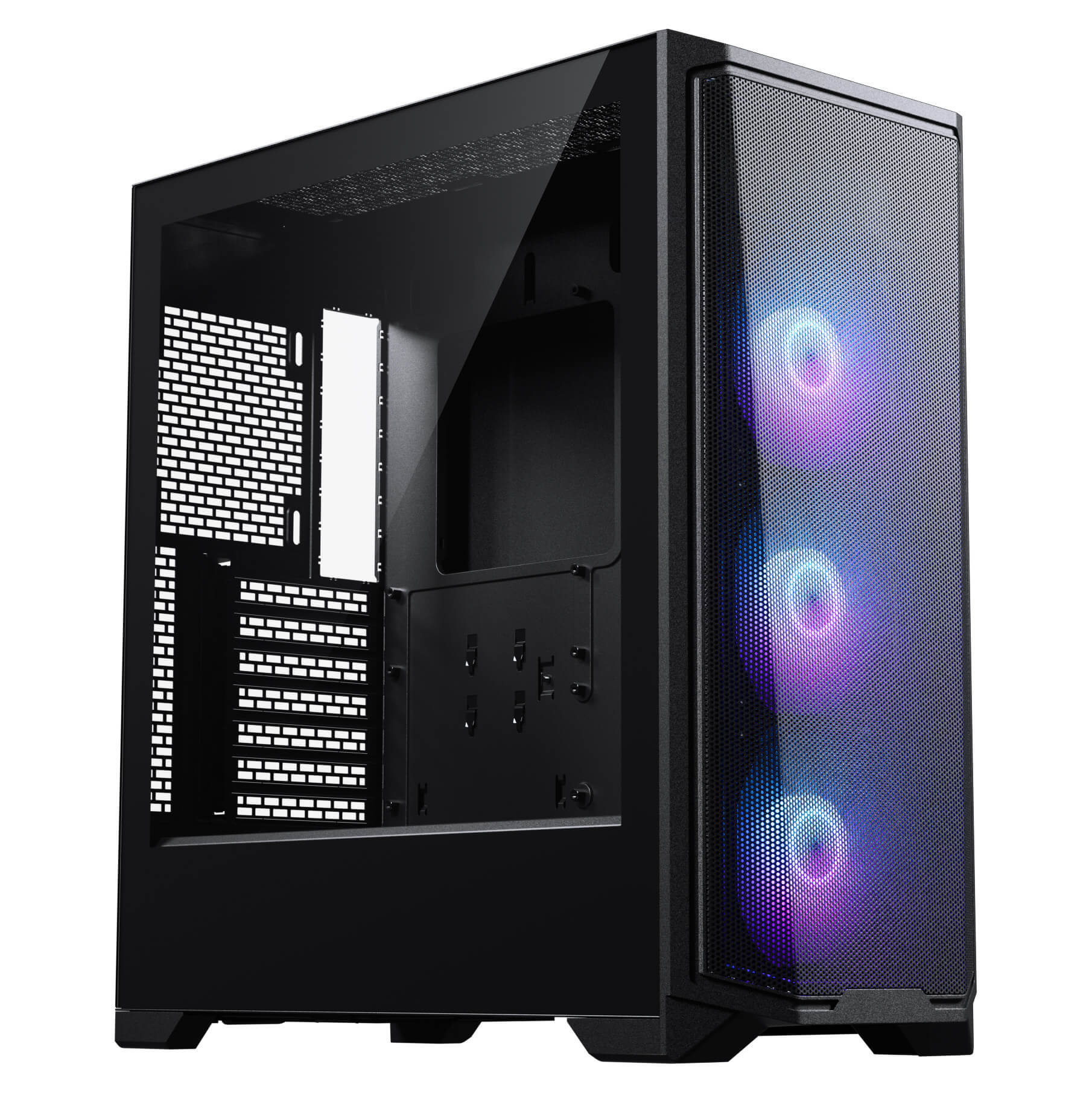

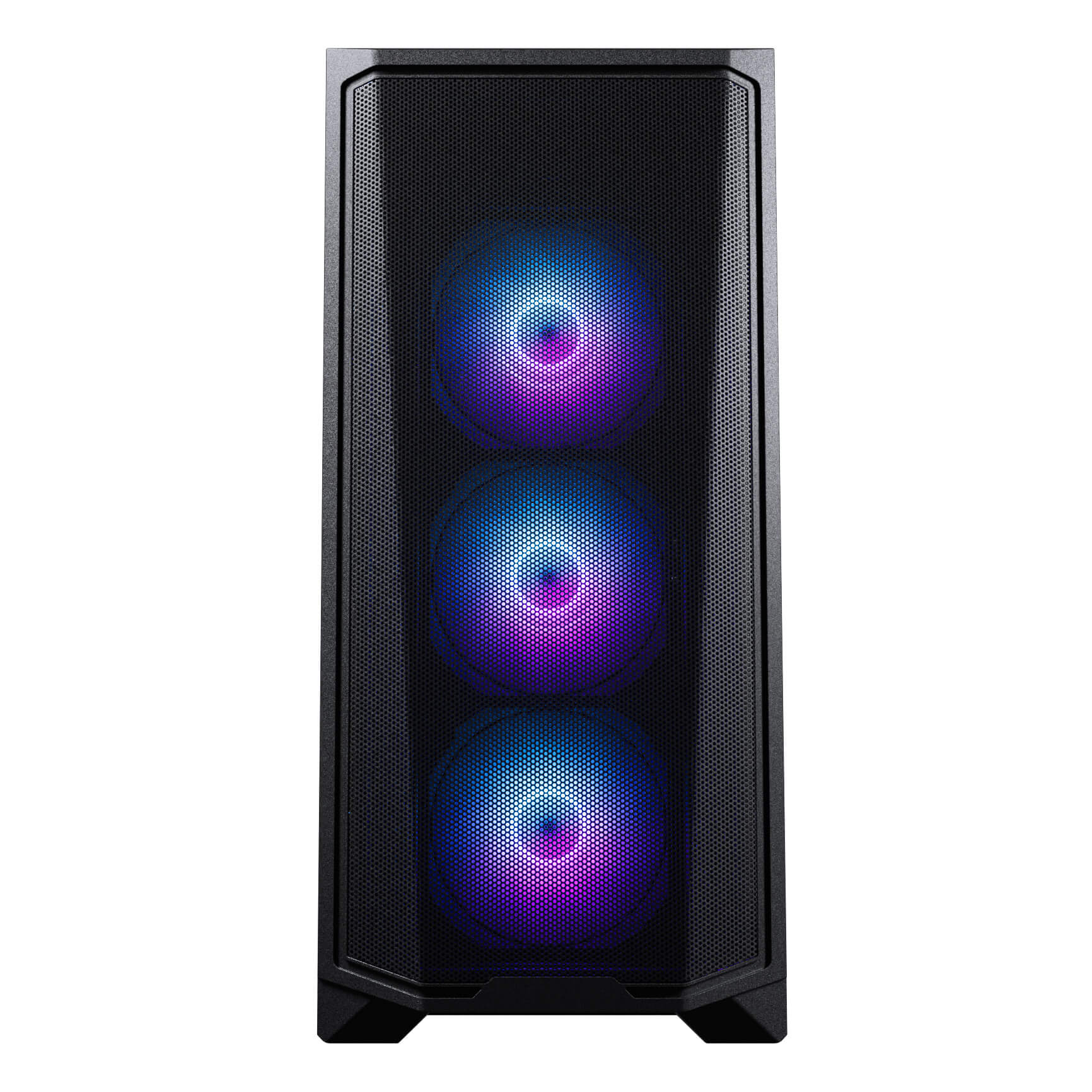

The Phanteks Eclipse G370A is all about performance without frills. High airflow mesh throughout the chassis with 7x 120mm fan positions and dedicated top 360 radiator clearance, provides ample fresh airflow to unlock even the most demanding workstation grade systems. Extensive mainboards support up to and including SSI-EEB mainboards make the G370A punch way above its weight.

- High airflow mesh throughout the chassis for the best cooling performance.

- Dedicated 360 radiator space in the top to cool any CPU.

- Support for up to 7x 120mm fans.

- Workstation-ready with support for up to SSI-EEB mainboards.

Case Specifications
Dimension	465 x 476 x 220 mm / 18.30 x 18.74 x 8.66 in
Form Factor	Mid-Tower
Material(s)	Steel Chassis, Tempered Glass Window, ABS Plastic
Mainboard Support	SSI-EEB, E-ATX, ATX, Micro-ATX, Mini-ITX
Rear Connect Motherboard	No
Front I/O	1x USB 3.0, 1x USB-C 3.0, Microphone/Headphone Combo, Power Button, Reset Button
Connectors	Front I/O, HD Audio, USB 3.0

Expansion & Drive Bays
Expansion Slots	7
Vertical GPU Support	No
Internal 3.5”	1x (1x included)
Internal 2.5”	2x (2x included)

Cooling	120mm (Fan)	140mm (Fan)
Top	3x	-
Front	3x	-
Rear	1x	-

Liquid Cooling	120mm (Radiator)	140mm (Radiator)
Top	Up to 360	-
Front	Up to 240	-
Rear	-	-

Clearance
Graphic Card Length	400mm (Without front fans installed)
CPU Cooler Height	170mm
PSU Length	200mm
Top Radiator	400 x 120 x 60mm

Eclipse Series

Phanteks Eclipse G500A D-RGB Matte White

Phanteks Eclipse G370A Mid-tower Gaming Chassis Black

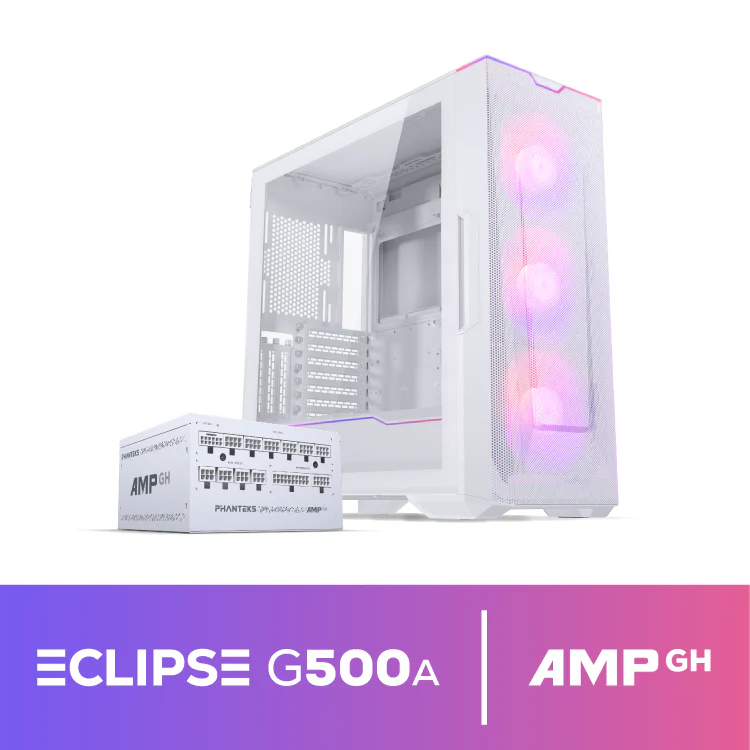

Eclipse G500A and PSU Bundle
